BYZ09-30-01G
Belongs to category: Solenoid for DC wet valve
DC 24V
AC 220V
Features:
- Applicable to 5-way hydraulic solenoid directional valve.
- With threaded connection, the coil can be replaced without shutdown.
- Equipped with manual emergency device.
- Coil inner hole φ16

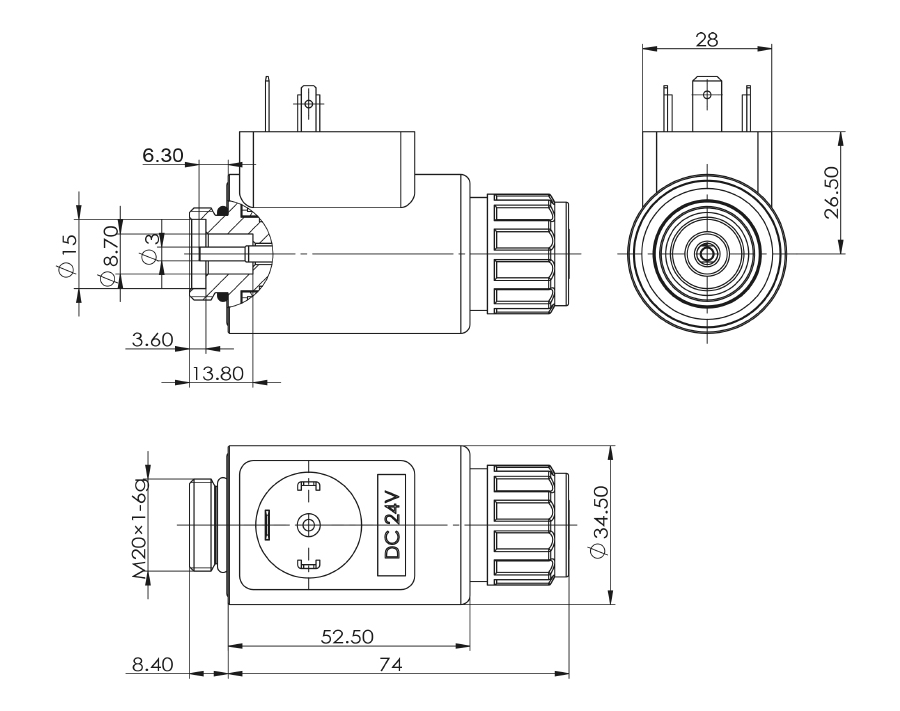

Outline and connection dimensions:
|
technical parameter |
||
|
Ambient temperature |
℃ |
-25~50 |
|
Voltage fluctuation range |
% |
85～110 |
|
Rated power |
W |
25 |
|
Rated stroke |
mm |
2.8 |
|
Full stroke |
mm |
≥6.1 |
|
Working oil pressure |
Mpa |
≤21 |
|
Degree of protection |
IP65 |
|
|
Operating frequency |
T/h |
12000 |
|
Power on duration |
% |
100 |
|
Insulation class |
H(180) |
|
|
Electrical connection mode |
DIN43650 |
|
Matters needing attention:
1. The coil shall not be powered on alone, which has the risk of burning!
2. Non explosion-proof coil shall not be used in medium with explosion risk!
3. After the coil is installed, it must be grounded reliably, otherwise there is a risk of electric shock！

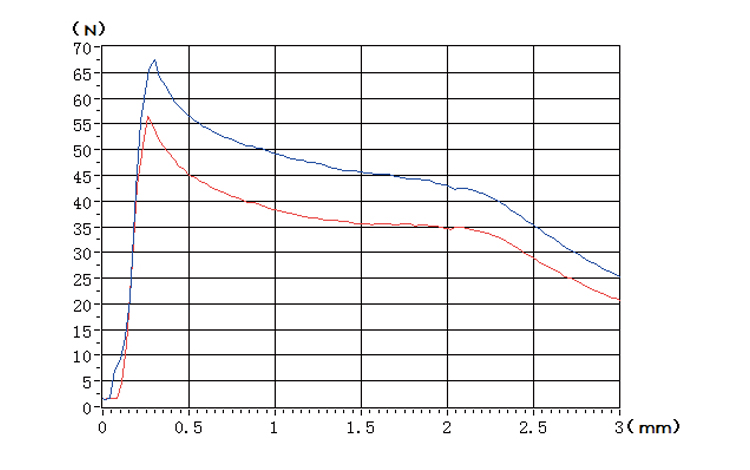

F-S characteristic curve:
The sample data comes from the laboratory environment and is only for reference. If your company needs the latest data or has special needs, please contact Boye hydraulic engineer.
